Chapter 5 | Advanced SQL

约 3569 个字 372 行代码 2 张图片 预计阅读时间 22 分钟

Accessing SQL from a Programming Language

There are two approaches to accessing database from a general-purpose programming language.

1. API (Application Program Interface) -- A general-purpose program can connect to and communicate with a database server using a collection of functions.
2. Embedded SQL -- provides a means by which a program can interact with a database server.

The SQL statements are translated at compile time into function calls.

At runtime, these function calls connect to the database using an API that provides dynamic SQL facilities.

---

JDBC and ODBC

• API (application-program interface) for a program to interact with a database server Application makes calls to - Connect with the database server - Send SQL commands to the database server - Fetch tuples of result one-by-one into program variables

• ODBC (Open Database Connectivity) works with C, C++, C#

• JDBC (Java Database Connectivity) works with Java
• Embedded SQL in C
• SQLJ - embedded SQL in Java
• JPA (Java Persistence API) - OR mapping of Java

---

JDBC

JDBC is a Java API for communicating with database systems supporting SQL.

JDBC 标准定义了用于将 Java 程序连接到数据库服务器的应用程序接口(Application Program Interface，API).

Model for communicating with the database:

1. Open a connection 从Java程序访问数据库的第一步是打开一个与数据库的连接。
2. Create a "statement" object 一旦打开一个数据库连接，程序就可以利用该连接来向数据库发送 SQL 语句用于执行。这是通过一个 "Statement" 类的一个实例来完成的。
3. Execute queries using the Statement object to send queries and fetch results 我们既可以调用 executeQuery() 方法又可以调用 executeUpdate() 方法来执行一条语句。
4. Exception mechanism to handle errors

---

JDBC Code

public static void JDBCexample(String dbid, String userid, String passwd) {
    try{
        // 连接到数据库
        Connection conn = DriverManager.getConnection("jdbc:oracle:thin:@db.yale.edu:2000:univdb", userid, passwd);

        // 创建Statement对象
        Statement stmt = conn.createStatement();

        // 执行实际工作
        ... Do Actual Work ...

        // 关闭Statement对象
        stmt.close();

        // 关闭Connection对象
        conn.close();
    }catch (SQLException sqle){

        // 捕获并打印SQLException
        System.out.println("SQLException : " + sqle);
    }
}

1. 调用 getConnection() 的第一个参数是一个字符串，它指定了 URL 或服务器所运行的主机名称(在我们的示例中是 db.yale.edu )，以及某些可能的其他信息，例如，与数据库通信所用的协议(在我们的示例中是 jdbc:oracle:thin: ，我们马上就会看到为什么需要它)、数据库系统用来通信的端口号(在我们的示例中是 2000 )，还有服务器端使用的特定数据库(在我们的示例中是 univdb )。请注意 JDBC 只指定 API 而不指定通信协议。一个 JDBC 驱动器可能支持多种协议，我们必须指定一种数据库和驱动器都支持的协议。协议的详细内容是由厂商设定的。
2. getConnection() 的第二个参数是一个数据库用户的标识，它是一个字符串。
3. 第三个参数是密码，它也是一个字符串。(请注意，如果未经授权的人访问你的 Java 代码，在 JDBC 代码中指定密码会带来安全性风险。)

• MySQL 的等价表示是 jdbc:mysql: .
• 执行任何 SQL 方法都可能导致引发异常。try{}catch{} 结构允许我们捕获在进行 JDBC 调用时出现的任何异常(错误情况)，并采取适当的操作。在 JDBC 编程中，它可能有助于区分 SQLException (这是面向 SQL 的异常)和 Exception 的一般情况(它可以是任何 Java 异常比如空指针异常或数组下标越界异常)。

---

Update to database

try{

    // 执行SQL语句，向instructor表中插入一条数据
    stmt.executeUpdate("insert into instructor values('77987', 'Kim', 'Physics', 98000)");
}catch (SQLException sqle){

    // 捕获SQL异常，并输出错误信息
    System.out.println("Could not insert tuple. " + sqle);
}

---

Execute query and fetch and print results

// 执行查询语句，查询教师表中每个部门的平均工资
ResultSet rset = stmt.executeQuery("select dept_name, avg (salary)
                                    from instructor
                                    group by dept_name");

// 遍历查询结果，rset.next()：将结果集的游标移动到下一行。
while (rset.next()){

    // 获取当前行的dept_name列的值。获取当前行的第二列的值（即平均工资）。
    System.out.println(rset.getString("dept_name") + " " + rset.getFloat(2));
}

• 使用 stmt.executeQuery() 来执行一次查询。它把结果中的元组集提取到 ResultSet 对象 rset 中，并每次取出一个元组进行处理。
• 结果集上的 next() 方法用来测试在结果集中是否还存在至少一个尚未提取的元组，如果存在就取出该元组。 next() 方法的返回值是一个布尔变量，它表示该方法是否提取了一个元组。
• 通过使用名称以 get 打头的各种方法可以检索来自所提取元组的各个属性。getString() 方法可以检索任何基本的 SQL 数据类型(并将值转换成JavaString 对象)，当然也可以使用像 getFloat() 那样的约束性更强的方法。各种get方法的参数既可以是被指定为一个字符串的属性名又可以是一个整数，它表明所需属性在元组中的位置。
• rset.getString("dept_name") and rset.getString(1) are equivalent if dept_name is the first argument of select result.
• Dealing with Null values:

int a = rset.getInt("a");
if (rset.wasNull()) Systems.out.println("Got null value");

---

Prepared Statement

PreparedStatement pStmt = conn.prepareStatement("insert into instructor values(?,?,?,?)");
pStmt.setString(1, "88877");
pStmt.setString(2, "Perry");
pStmt.setString(3, "Finance");
pStmt.setInt(4, 125000);
pStmt.executeUpdate();

pStmt.setString(1, "88878");
pStmt.executeUpdate();

• 第一个变量指明我们为哪个"?"参数赋值(第一个参数是1, 区别于大多数其他的 Java 结构，这些结构是从 0 开始的)。第二个变量指定要赋予的值。

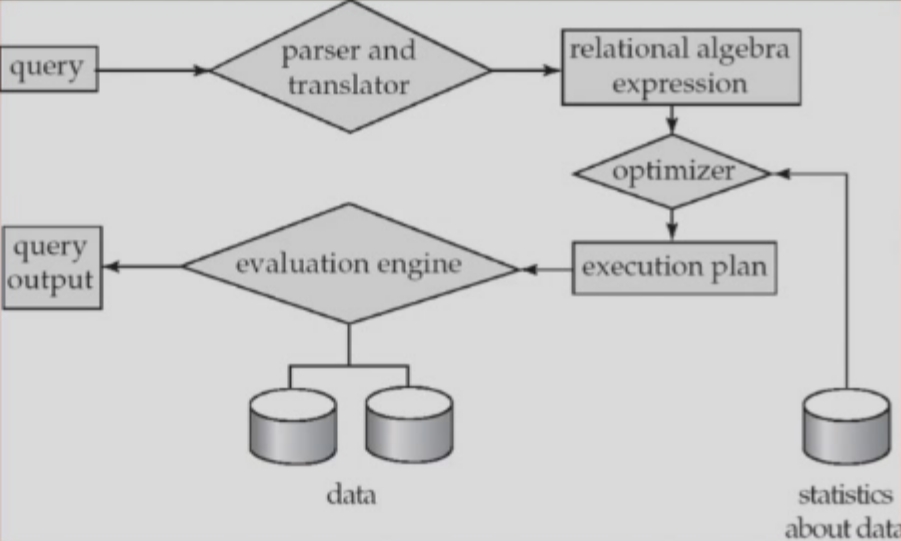

每条 SQL 语句都要经过以下过程：

1. 语法检查
2. 语义检查
3. 查询优化
4. 执行

这些过程如果每条 SQL 都执行，代价很大，因此可以先进行一次性的语法、语义、查询优化，只留下几个参数。

---

SQL Injection

WARNING: always use prepared statements when taking an input from the user and adding it to a query

NEVER create a query by concatenating strings which you get as inputs

Suppose query is constructed using "select * from instructor where name = '" + name + " ' "

Suppose the user, instead of entering a name, enters: X' or 'Y' = 'Y

then the resulting string of the statement becomes: "select * from instructor where name = '" + "X' or 'Y' = 'Y" + "'"

which is: select * from instructor where name = 'X' or 'Y' = 'Y'

User could have even used X'; update instructor set salary = salary + 10000;

then select * from instructor where name = 'X'; update instructor set salary = salary + 10000;

Always use prepared statements, with user inputs as parameters.

使用预备语句就可以避免这类问题，因为输入的字符串将被插入转义字符，因此所产生的查询变为:

"select * from instructor where name = 'X\'or \'Y\'=\'Y'

这是无害的语句，并返回空的关系。

先 prepare，先语法检查、语义分析，再优化执行。这样有利于防止 SQL 注入的攻击。

---

Metadata Features

ResultSet metadata

E.g., after executing query to get a ResultSet rs:

ResultSetMetaData rsmd = rs.getMetaData();
for(int i = 1; i <= rsmd.getColumnCount(); i++){
    System.out.println(rsmd.getColumnName(i));
    System.out.println(rsmd.getColumnTypeName(i));
}

---

Database metadata

DatabaseMetaData dbmd = conn.getMetaData();
ResultSet rs = dbmd.getColumns(null, "univdb", "department", "%");

// Arguments to getColumns: Catalog, Schema-pattern, Table-pattern, and Column-Pattern
// Returns: One row for each column; row has a number of attributes, such as COLUMN_NAME, TYPE_NAME

while( rs.next()){
    System.out.println(rs.getString("COLUMN_NAME"), rs.getString("TYPE_NAME"));
}

• getTables() 方法允许获取数据库中所有表的列表。 getTables() 的前三个参数与 getColumns() 是相同的。第四个参数可用于限制所返回的表的类型;如果被设置为空，则返回所有表，包括系统内部表，但该参数可以设置为仅返回由用户创建的表。

---

Transaction Control in JDBC

By default, each SQL statement is treated as a separate transaction that is committed automatically bad idea for transactions with multiple updates

Can turn off automatic commit on a connection conn.setAutoCommit(false);

Transactions must then be committed or rolled back explicitly conn.commit(); or conn.rollback();

Turns on automatic commit conn.setAutoCommit(true).

JDBC Basics Tutorial(https://docs.oracle.com/javase/tutorial/jdbc/index.html)

---

SQLJ

JDBC is overly dynamic, errors cannot be caught by compiler

SQLJ: embedded SQL in Java

#sql iterator deptInfoIter ( String dept name, int avgSal);
deptInfoIter iter = null;
#sql iter = { select dept_name, avg(salary) as avgSal from instructor group by dept_name};
while (iter.next()){
    String deptName = iter.dept_name();
    int avgSal = iter.avgSal();
    System.out.println(deptName + " " + avgSal);
}
iter.close();

SQLJ Developer's Guide(https://docs.oracle.com/en/database/oracle/oracle-database/20/jsqlj/toc.htm)

---

ODBC

Open DataBase Connectivity(ODBC) standard

standard for application program to communicate with a database server

application program interface (API) to - open a connection with a database, - send queries and updates, - get back results.

Applications such as GUI, spreadsheets, etc. can use ODBC

Was defined originally for Basic and C, versions available for many languages.

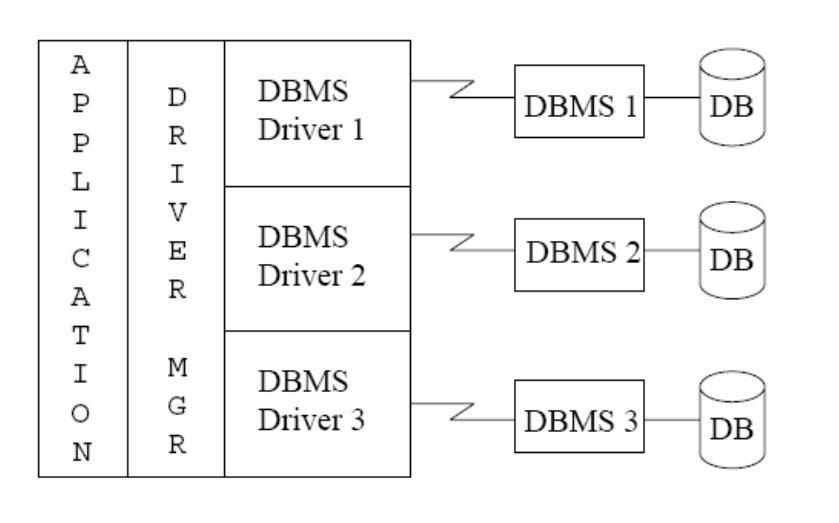

Each database system supporting ODBC provides a "driver" library that must be linked with the client program.

When client program makes an ODBC API call, the code in the library communicates with the server to carry out the requested action, and fetch results.

ODBC program first allocates an SQL environment, then a database connection handle.

Opens database connection using SQLConnect(). Parameters for SQLConnect: - connection handle, - the server to which to connect - the user identifier, - password

Must also specify types of arguments:

SQL_NTS denotes previous argument is a null-terminated string.

---

ODBC Code

int ODBCexample(){
    RETCODE error;
    HENV env; /* environment */
    HDBC conn; /* database connection */

    // 分配一个环境
    SQLAllocEnv(&env);

    // 在这个环境里面生成一个代表连接的变量
    SQLAllocConnect(env, &conn);

    // 真正的连接，SQL_NTS表示参数是null-terminated string，也即 C 语言中字符串的结尾是 '\0'
    SQLConnect(conn, "db.yale.edu", SQL_NTS, "avi", SQL_NTS, "avipasswd", SQL_NTS);

    { ... Do actual work ... }
    SQLDisconnect(conn);
    SQLFreeConnect(conn);
    SQLFreeEnv(env);
}

• 大写的东西都是 ODBC 定义的类型、返回值。
• 第一步是建立与服务器的连接。为此，程序先分配一个 SQL 环境变量，然后分配一个数据库连接句柄。ODBC 定义了 HENV、HDBC 和 RETCODE 类型。程序随后通过使用 SQLConnect 打开数据库的连接，此调用需要几个参数，包括连接句柄、要连接的服务器用户标识和用于数据库的密码。

---

Program sends SQL commands to database by using SQLExecDirect

Result tuples are fetched using SQLFetch()

SQLBindCol() binds C language variables to attributes of the query result

char deptname[80];
float salary;
int lenOut1, lenOut2;
HSTMT stmt;

// 按系统计每个系的工资总额，没执行之前在C语言里面就是字符串
char * sqlquery = "select dept_name, sum (salary)
                    from instructor
                    group by dept_name";

// 生成一个代表SQL语句的变量
SQLAllocStmt(conn, &stmt);

// 没有 prepare 直接执行
error = SQLExecDirect(stmt, sqlquery, SQL_NTS);

// 如果执行成功，就绑定变量
if (error == SQL_SUCCESS){

    // 把查询结果的第一列绑定到deptname，第二列绑定到salary
    SQLBindCol(stmt, 1, SQL_C_CHAR, deptname , 80, &lenOut1);
    SQLBindCol(stmt, 2, SQL_C_FLOAT, &salary, 0 , &lenOut2);

    // 不断获取查询结果，直到没有结果为止
    while (SQLFetch(stmt) == SQL_SUCCESS){
        printf (" %s %g\n", deptname, salary);
    }
}
SQLFreeStmt(stmt, SQL_DROP);

---

ODBC Prepared Statements

SQL statement prepared: compiled at the database

Can have placeholders: E.g. insert into account values(?,?,?)

Repeatedly executed with actual values for the placeholders

To prepare a statement SQLPrepare(stmt, <SQL String>);

To bind parameters SQLBindParameter(stmt, <parameter#>, ... type information and value omitted for simplicity...)

To execute the statement retcode = SQLExecute(stmt);

---

More ODBC Features

Metadata features

finding all the relations in the database and finding the names and types of columns of a query result or a relation in the database.

By default, each SQL statement is treated as a separate transaction that is committed automatically.

Can turn off automatic commit on a connection SQLSetConnectOption(conn, SQL_AUTOCOMMIT, 0)

Transactions must then be committed or rolled back explicitly by SQLTransact(conn, SQL_COMMIT) or SQLTransact(conn, SQL_ROLLBACK)

在缺省情况下，每条SQL语句都被认为是一个自动提交的单独事务。

SQLSetConnectOption(conn,SQL AUTOCOMMIT,0) : 关闭 conn 连接上的自动提交，然后事务必须通过 SQLTransact(conn,SQL COMMIT) 来显式提交或通过 SQLTransact (conn,SQL ROLLBACK) 来显式回滚。

ODBC Resources : MySQL Connector/ODBC Developer Guide(https://docs.oracle.com/cd/E17952_01/connector-odbcen/index.html)

---

Embedded SQL

• The SQL standard defines embeddings of SQL in a variety of programming languages such as C, Java, and Cobol.
• A language to which SQL queries are embedded is referred to as a host language(宿主语言), and the SQL structures permitted in the hostlanguage comprise embedded SaL.
• EXEC SaL statement is used to identify embedded SQL request to the preprocessol EXEC SQL <embedded SQL statement>END EXEC
  • the Java embedding uses: # SQL{...};
  • the C embedding uses: EXEC SQL<embedded SQL statement >;

---

Embedded SOL without cursor

main(){

    //声明段开始
    EXEC SQL INCLUDE SQLCA;
    EXEC SQL BEGIN DECLARE SECTION;

    //host variables(宿主变量)声明，用于与数据库内的数据绑定
    char account_no[l1];
    char branch_name[16];
    int balance;

    //声明段结束
    EXEC SQL END DECLARE SECTION;
    EXEC SQL CONNECT TO bank_db USER Adam Using Eve;

    scanf("%s %s %d",account_no, branch_name, balance);
    EXEC SQL insert into account values (:account_no, :branch_name, :balance);

    If(SQLCA.sqlcode !=0){
        printf ("Error!\n");
    }else{
        printf ("Success!\n");
    }
}

• 在执行任何 SQL 语句之前，程序必须首先连接到数据库。
• 在嵌入式 SQL 语句中可以使用宿主语言的变量，不过它们的前面必须加上冒号(:)以将它们与 SQL 变量区分开来。

---

Embedded SOL without cursor(update)

main(){
    EXEC SQL INCLUDE SQLCA; //声明段开始
    EXEC SQL BEGIN DECLARE SECTION;
    char account_no[11];//host variables(宿主变量)声明
    int balance;
    EXEC SQL END DECLARE SECTION://声明段结束
    EXEC SQL CONNECT TO bank_db USER Adam Using Eve;

    scanf("%s %d", account_no, balance);

    EXEC SOL update account
            set balance= balance+:balance
            where account number=:account_no;

    If(SQLCA sqlcode ! =0) printf("Error!\n");
    else printf("Success!\n");
}

---

Embedded SOL without cursor(select single record)

main(){
    EXEC SQL INCLUDE SOLCA: //声明段开始
    EXEC SQL BEGIN DECLARE SECTION;
    char account_no[11];//host variables(宿主变量)声明
    int balance;
    EXEC SQL END DECLARE SECTION;//声明段结束
    EXEC SQL CONNECT TO bank_db USER Adam Using Eve;
    scanf("%s", account_no);

    // select into 即可实现查询
    EXEC SQL select balance into :balance
                from account
                where account_number = :account_no;

    If(SQLCA sqlcode !=0) printf("Error!\n");
    else printf (“balance= %d \n”, balance);
}

---

Embedded SQ L with cursor(select multiple records、Delete and Update)

main(){
    EXEC SQL INCLUDE SOLCA;
    EXEC SOL BEGIN DECLARE SECTION;
    char customer_name[2l];
    char account_no[l1];
    int balance;
    EXEC SQL END DECLARE SECTION;
    EXEC SQL CONNECT TO bank_db USER Adam Using Eve;

    // 声明游标，指向这个查询结果
    EXEC SQL DECLARE account cursor CURSOR for
        select account_number, balance
        from depositor natural join account
        where depositor.customer_name=:customer_name;
        scanf("%s",customer_name);

    // open 游标相当于是运行
    EXEC SQL open account_cursor;
    for (; ;){
        EXEC SQL fetch account_cursor into :account_no, :balance;

        if(SQLCA.sqlcode!=0)
            break;

        if(balance <1000)
            EXEC SQL update account set balance = balance * 1.05
                    where current ofaccount_cursor;
        else
            EXEC SQL update account set balance = balance * 1.06
                    where current of account_cursor;

        printf("%s %d \n", account_no, balance);
    }
    EXEC SQL close account_cursor;
}

---

Basic Steps in Query Processing

1. Parse the Query: The query is parsed to determine its structure and to check for syntax errors.
   • 解析查询以确定其结构并检查语法错误。
2. Generate an Execution Plan: The query is translated into a sequence of steps that will be executed by the DBMS.
   • 查询被转换为将由 DBMS 执行的一系列步骤。(like 优化)
3. Execute the Query: The execution plan is executed to retrieve the data that satisfies the query. This may involve reading data from disk, performing calculations, and joining tables.
   • 执行执行计划，获取满足查询的数据。这可能涉及从磁盘读取数据、执行计算和联接表。
4. Return the Result: The result of the query is returned to the user.
   • 将查询结果返回给用户。

Embedded SQL Resources Oracle Database Programmer's Guide - Embedded SQL(https://docs.oracle.com/en/database/oracle/oracle-database/20/lnpcc/embedded-SQL.html#GUID-C671CABF-202A-4503-A16B-DC78D3F1AB13)

---

Procedural Constructs in SQL

SQL provides a module language : Permits definition of procedures in SQL, with if-then-else statements, forand while loops, etc.

Stored Procedures

Can store procedures in the database, then execute them using the call statement. Permit external applications to operate on the database without knowing about internal details.

---

SQL Functions

Define a function that, given the name of a department, returns the count of the number of instructors in that department.

• SQL标准支持以返回表作为结果的函数;这种函数称为表函数。

-- 函数的名字、参数、返回值类型
create function dept_count(dept_name varchar(20))
returns integer

-- 函数的主体
begin
    declare d_count integer;
    select count (*) into d_count
    from instructor
    where instructor.dept_name = dept_name
    return d_count;
end

---

Table Functions

SQL:2003 added functions that return a relation as a result

SQL 也支持过程，函数也可以写成一个过程。

Example: Return all accounts owned by a given customer

create function instructors_of (dept_name char(20))
returns table ( ID varchar(5), name varchar(20), dept_name varchar(20), salary numeric(8,2))

-- 只有一条语句，所以不需要begin和end
return table
    (select ID, name, dept_name, salary
    from instructor
    where instructor.dept_name = instructors_of.dept_name)

Usage
    select *
    from table (instructors_of ('Music'))

---

SQL Procedures

在 SQL 中 Procedure 没有返回值，返回值是由参数传递的。

The dept_count function could instead be written as procedure:

create procedure dept_count_proc (in dept_name varchar(20),
                                    out d_count integer)
begin
    select count(*) into d_count
    from instructor
    where instructor.dept_name = dept_count_proc.dept_name
end

• 关键字 in 和 out 分别表示待赋值的参数和为了返回结果而在过程中设置值的参数。

Procedures can be invoked either from an SQL procedure or from embedded SQL, using the call statement.

可以从一个 SQL 过程中或者从嵌入式 SQL 中通过使用 call 语句来调用过程:

declare d_count integer;
call dept_count_proc('Physics', d_count);

Procedures and functions can be invoked also from dynamic SQL.

while 语句和 repeat 语句的语法如下：

while 布尔表达式 do
        语句序列;
end while

repeat
        语句序列;
until 布尔表达式
end repeat

还有 for 循环，它允许在查询的所有结果上进行循环。

for 循环变量 in 语句序列 do
        语句序列;
end for

declare n integer default O;
for r as
    select budget from department
    where dept_name = 'Music'
do
    set n = n- r.budget
end for

SQL 也支持 if-then-else 语句。

if 布尔表达式 then
    语句序列;
else if 布尔表达式 then
    语句序列;
else
    语句序列;
end if

---

Triggers

A trigger is a statement that is executed automatically by the system as a side effect of a modification to the database.

触发器是在表上定义的一些程序、一个函数、一个过程，这些过程是被某些事件激活的。

Trigger - ECA rule

• E: Event （insert,delete,update）
• C: Condition
• A: Action

To design a trigger mechanism, we must:

• Specify the conditions under which the trigger is to be executed.
• Specify the actions to be taken when the trigger executes.

Triggers introduced to SQL standard in SQL:1999, but supported even earlier using non-standard syntax by most databases.

Example:

-- 额外定义一个表
account_log(account, amount, datetime)

-- 定义一个触发器
create trigger account_trigger after update of account on balance
referencing new row as nrow
referencing old row as orow

-- 行级触发器
for each row
when nrow.balance - orow.balance >= 200000 or orow.balance - nrow.balance >= 50000
begin
    insert into account_log values (nrow.account-number, nrow.balance - orow.balance , current_time())
end

---

E.g. time_slot_id is not a primary key of timeslot, so we cannot create a foreign key constraint from section to timeslot.

Alternative: use triggers on section and timeslot to enforce integrity constraints

create trigger timeslot_check1 after insert on section
referencing new row as nrow

for each row

/* time_slot_id not present in time_slot */
when (nrow.time_slot_id not in (
                                select time_slot_id
                                from time_slot))
begin
    rollback
end;

---

create trigger timeslot_check2 after delete on timeslot
referencing old row as orow

for each row

/* last tuple for time slot id deleted from time slot */
when (orow.time_slot_id not in (
                                select time_slot_id
                                from time_slot)

/* and time_slot_id still referenced from section*/
                        and orow.time_slot_id in (
                                select time_slot_id
                                from section))

begin
    rollback
end;

---

Trigger to Maintain credits_earned value

create trigger credits_earned after update of takes on grade
referencing new row as nrow
referencing old row as orow

for each row
when nrow.grade <> 'F' and nrow.grade is not null
    and (orow.grade = 'F' or orow.grade is null)
begin atomic
    update student
    set tot_cred = tot_cred + (
        select credits
        from course
        where course.course_id= nrow.course_id)
    where student.id = nrow.id;
end;

---

Trigger used before events

create trigger setnull before update of takes
referencing new row as nrow
for each row
when (nrow.grade ='')
begin atomic
    set nrow.grade = null
end;

• 触发器可以在事件(插入、删除或更新)之前被激活，而不仅是在事件之后被激活。
• 在事件之前执行的触发器可以作为避免非法更新、插入或删除的额外约束。为了避免执行非法操作而产生错误，触发器可以采取措施来纠正问题，使更新、插入或删除变得合法化。

---

Statement Level Triggers

Instead of executing a separate action for each affected row, a single action can be executed for all rows affected by a transaction.

我们可以针对引起插入、删除或更新的整条 SQL 语句执行单个操作，而不是针对每个受影响的行执行一个操作。

为了做到这一点，我们用 for each statement 子句来替代 for each row 子句。然后可以用 referencing old table as 子句或 referencing new table as 子句来指代包含所有受影响行的临时表(称为过渡表(transitiontable))。

过渡表不能用于 before 触发器，但是它们可以用于 after 触发器，无论是语句触发器还是行触发器。这样，在过渡表的基础上，单条 SQL 语句就可以用来执行多个操作。

create trigger grade_trigger after update of takes on grade
referencing new table as new_table

for each statement
when exists( select avg(grade)
            from new_table
            group by course_id, sec_id, semester, year
            having avg(grade)< 60 )

begin
    rollback
end;

---

When Not To Use Triggers

Triggers were used earlier for tasks such as

- maintaining summary data (e.g., total salary of each department).
- Replicating databases by recording changes to special relations (called change or delta relations) and having a separate process that applies the changes over to a replica.

There are better ways of doing these now:

- Databases today provide built in materialized view facilities to maintain summary data.
- Databases provide built-in support for replication.

Encapsulation facilities can be used instead of triggers in many cases:

- Define methods to update fields
- Carry out actions as part of the update methods instead of through a trigger

---

Recursive Queries

Recursion in SQL

-- recursive 指明了视图是递归的
with recursive rec_prereq(course_id, prereq_id) as (

    -- 基础查询（非递归部分）
    select course_id, prereq_id
    from prereq

    union

    -- 递归部分
    select rec_prereq.course_id, prereq.prereq_id
    from rec_prereq, prereq
    where rec_prereq.prereq_id = prereq.course_id
)

select ∗
from rec_prereq;

• 基础查询：从 prereq 表中获取所有课程的直接先修关系。
• 递归查询：将递归CTE的当前结果（rec_prereq）与原始表（prereq）连接。连接条件为 rec_prereq.prereq_id = prereq.course_id ，即“当前先修课的先修课”。最终结果为原始课程（rec_prereq.course_id）和更底层的先修课（prereq.prereq_id）。

假设执行完基础查询后我们得到了这样的表：

course_id	prereq_id
A	B
B	C
C	D

那么递归查询的意思是（以 A 为例）：

从上述表与原始表中查找，当上述表中 prereq_id 与原始表 course_id 相等时，选择上述表这一行中的 course_id 和原始表中查询时对应的 course_id。

对递归视图含义的最好的理解方式如下:

1. 首先计算基查询，并把所有结果元组添加到递归定义的视图关系 rec_prereg 中(它初始为空)。
2. 然后用视图关系的当前内容计算递归查询并把所有结果元组加回到视图关系中。
3. 持续重复上述步骤直至没有新的元组添加到视图关系中为止。

所得到的视图关系实例被称为递归视图定义的不动点(fixed point)。这样，视图关系就被定义为正好包含不动点实例中的元组。

---

评论
